Rof Modulator Elektrooptik 1550nm Seri AM Modulator Intensitas 40G
Fitur
* mundhut selipan Low
* Bandwidth dhuwur
* Tegangan setengah gelombang rendah
* Pilihan pangaturan dhewe
Aplikasi
⚫ Sistem ROF
⚫ Distribusi kunci kuantum
⚫ Sistem penginderaan laser
⚫ Modulasi side-band
Dawane gelombang
⚫ 850nm
⚫ 1064nm
⚫ 1310nm
⚫ 1550nm
Bandwidth
⚫ 300MHz
⚫ 2.5GHz
⚫ 10 GHz
⚫ 20GHz
| Dawane gelombang operasi | 850nm | 1064nm | 1310nm | 1550nm | |
| Bandwidth 3dB | ~ 10 GHz | ~ 10 GHz | ~ 10 GHz | ~ 10 GHz | ~ 20 GHz |
| Mundhut Selipan | <5dB | <5dB | <5dB | <5dB | |
| Rasio kepunahan @DC | > 23dB | > 23dB | > 23dB | > 23dB | |
| VΠ @RF (1KHz) | <3V | <4V | <4.5V | <5.5V | <6V |
| VΠ @Bias | <3.5V | <5V | <6V | <7V | |
Informasi Pemesanan
| R | AM | 15 | 10G | XX | XX |
| Tipe: AM --- Intensity Modulator | Dawane gelombang: 08---850nm10---1060nm13---1310nm 15---1550nm | Bandwidth 3dB: 2.5G---10GHz10G---10GHz20G---20GHz 40G---28GHz | Tipe Serat In-Out: PP---PM/PMPS---PM/SMF
| Konektor optik: FA --- FC/APCFP --- FC/PCSP --- Kustomisasi |
R-AM-15-10G
Modulator Intensitas Wavalength 1550nm 10GHz
| Paramèter | Simbol | Min | Tipe | Maks | Unit | ||||
| Parameter optik | |||||||||
| Dawane gelombang operasi | l | 1530 | 1550 | 1565 | nm | ||||
| mundhut selipan | IL | 4 | 5 | dB | |||||
| Mundhut bali optik | ORL | -45 | dB | ||||||
| Ngalih rasio punah @DC | ER@DC | 20 | 25 | 45 | dB | ||||
| Rasio kepunahan dinamis | DER | 13 | dB | ||||||
| serat optik | Port input | Panda PM Fujikura SM | |||||||
| port output | Panda PM Fujikura SM | ||||||||
| Antarmuka serat optik | FC / PC, FC / APC Utawa pangguna kanggo nemtokake | ||||||||
| Paramèter listrik | |||||||||
| Bandwidth operasi (-3dB) | S21 | 10 | 12 | GHz | |||||
| Tegangan setengah gelombang Vpi | RF | @50KHz | 4.5 | 5 | V | ||||
| bias | @Bias | 6 | 7 | V | |||||
| mundhut bali listrik | S11 | -12 | -10 | dB | |||||
| Impedansi input | RF | ZRF | 50 | W | |||||
| bias | ZBIAS | 1M | W | ||||||
| Antarmuka listrik | SMA(f) | ||||||||
Ketentuan Limit
| Paramèter | Simbol | Unit | Min | Tipe | Maks |
| Daya optik input | Ping, Max | dBm | 20 | ||
| Input daya RF | dBm | 28 | |||
| voltase bias | Vbias | V | -20 | 20 | |
| Suhu operasi | Ndhuwur | ℃ | -10 | 60 | |
| Suhu panyimpenan | Tst | ℃ | -40 | 85 | |
| Kelembapan | RH | % | 5 | 90 |
R-AM-15-20G
Modulator Intensitas Wavalength 1550nm 20GHz
| Paramèter | Simbol | Min | Tipe | Maks | Unit | ||||
| Parameter optik | |||||||||
| Dawane gelombang operasi | l | 1530 | 1550 | 1565 | nm | ||||
| mundhut selipan | IL | 4 | 5 | dB | |||||
| Mundhut bali optik | ORL | -45 | dB | ||||||
| Ngalih rasio punah @DC | ER@DC | 20 | 25 | 45 | dB | ||||
| Rasio kepunahan dinamis | DER | 13 | dB | ||||||
| serat optik | Port input | Panda PM Fujikura SM | |||||||
| port output | Panda PM Fujikura SM | ||||||||
| Antarmuka serat optik | FC / PC, FC / APC Utawa pangguna kanggo nemtokake | ||||||||
| Paramèter listrik | |||||||||
| Bandwidth operasi (-3dB) | S21 | 18 | 20 | GHz | |||||
| Tegangan setengah gelombang Vpi | RF | @50KHz |
| 4.5 | 5 | V | |||
| bias | @Bias |
| 6 | 7 | V | ||||
| mundhut bali listrik | S11 | -12 | -10 | dB | |||||
| Impedansi input | RF | ZRF | 50 | W | |||||
| bias | ZBIAS | 1M | W | ||||||
| Antarmuka listrik | SMA(f) | ||||||||
Ketentuan Limit
| Paramèter | Simbol | Unit | Min | Tipe | Maks |
| Daya optik input | Ping, Max | dBm | 20 | ||
| Input daya RF | dBm | 28 | |||
| voltase bias | Vbias | V | -20 | 20 | |
| Suhu operasi | Ndhuwur | ℃ | -10 | 60 | |
| Suhu panyimpenan | Tst | ℃ | -40 | 85 | |
| Kelembapan | RH | % | 5 | 90 |
R-AM-15-40G
Modulator Intensitas Wavalength 1550nm 40GHz
| Paramèter | Simbol | Min | Tipe | Maks | Unit | ||||
| Parameter optik | |||||||||
| Dawane gelombang operasi | l | 1525 | 1550 | 1565 | nm | ||||
| mundhut selipan | IL | 4 | 5 | dB | |||||
| Mundhut bali optik | ORL | -45 | dB | ||||||
| Ngalih rasio punah @DC | ER@DC | 20 | 23 | 45 | dB | ||||
| Rasio kepunahan dinamis | DER | 13 | dB | ||||||
| serat optik | Port input | Panda PM | |||||||
| port output | Panda PM utawa SMF-28 | ||||||||
| Antarmuka serat optik | FC / PC, FC / APC Utawa pangguna kanggo nemtokake | ||||||||
| Paramèter listrik | |||||||||
| Bandwidth operasi (-3dB) | S21 | 26 | 28 | 30 | GHz | ||||
| Tegangan setengah gelombang Vpi | RF | @1KHz |
| 5 | 5.5 | V | |||
| bias | @1KHz |
| 6 | 7 | V | ||||
| mundhut bali listrik | S11 | -12 | -10 | dB | |||||
| Impedansi input | RF | ZRF | 50 | W | |||||
| bias | ZBIAS | 1M | W | ||||||
| Antarmuka listrik | SMA(f) | ||||||||
Ketentuan Limit
| Paramèter | Simbol | Unit | Min | Tipe | Maks |
| Daya optik input@850nm | Ping, Max | dBm | 20 | ||
| Input daya RF | dBm | 28 | |||
| voltase bias | Vbias | V | -20 | 20 | |
| Suhu operasi | Ndhuwur | ℃ | -10 | 60 | |
| Suhu panyimpenan | Tst | ℃ | -40 | 85 | |
| Kelembapan | RH | % | 5 | 90 |

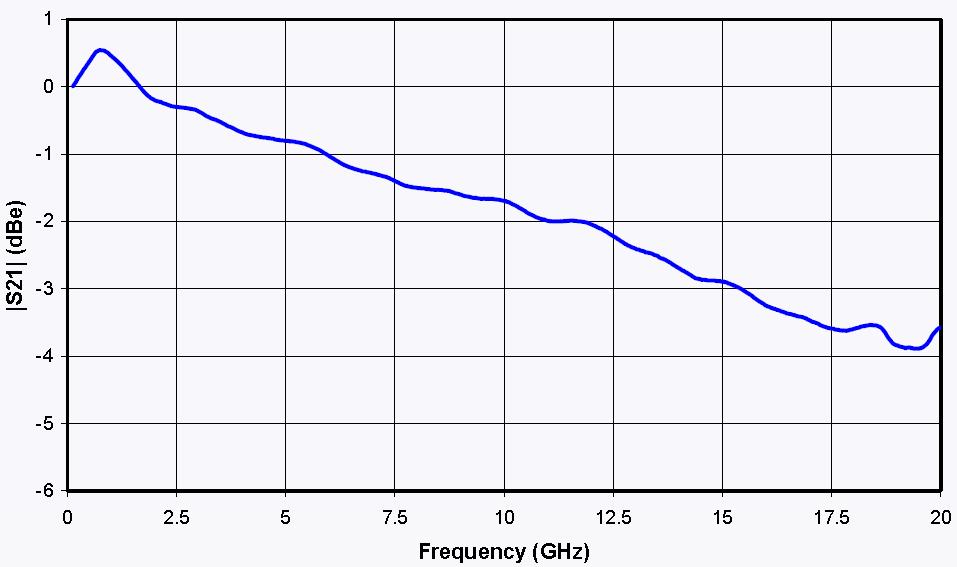

S21 kurva
&S11 Kurva
kurva S21 & S11
Diagram Mekanik
| PORT | Simbol | Cathetan |
| Ing | Port input optik | Serat PM (125μm/250μm) |
| Metu | port output optik | Pilihan PM lan SMF |
| RF | port input RF | SMA(f) |
| bias | port kontrol bias | 1,2 Bias, 34-N/C |
Rofea Optoelektronik menawarkan lini produk modulator Elektro-optik komersial, Modulator fase, modulator Intensitas, Photodetector, Sumber sinar laser, laser DFB, Amplifier optik, EDFA, laser SLD, modulasi QPSK, Laser pulsa, Detektor cahaya, Photodetector seimbang, driver Laser , Penguat serat optik, Pengukur daya optik, laser Broadband, Laser Tunable, Detektor optik, driver dioda Laser, Penguat serat.Kita uga nyedhiyakake akeh modulator khusus kanggo kustomisasi, kayata modulator fase array 1 * 4, Vpi ultra-rendah, lan modulator rasio kepunahan ultra-tinggi, utamane digunakake ing universitas lan institusi.
Muga-muga produk kita bakal migunani kanggo sampeyan lan riset sampeyan.
