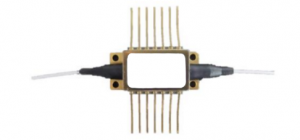

Butterfly rof kupu-kupu amplifier semikonduktor optik amplifier
Fitur
Bathi dhuwur
Konsumsi Daya Dhuwur
Kerugian gumantung polarisasi
Rasio punah dhuwur
Ndhukung Monitoring Suhu lan Kontrol Thermoelektrik Tec
Aplikasi
Pengujian produksi piranti serat optik
Amplifikasi daya sinyal cilik
Lapangan Penelitian Laboratorium
Sistem Komunikasi Serat Optik
Paramèter
| Parameter | Kondisi kerja | Unit | Min | TY | Max |
| Rangkaian gelombang operasi |
| nm | 1490 |
| 1590 |
| Bandwidth | @ -3db | nm | 55 |
| 60 |
| Kekuwatan optik jenuh | Yen = 250MA | dbm | 12 |
| 15 |
| Gain Signal Cilik | Yen = 250MA Pin = -25dbm | dB | 25 |
| 30 |
| Gain Output jenuh | Yen = 250MA | dB | 12 |
|
|
| Makarya saiki |
| mA |
| 250 | 400 |
| Terusake voltase |
| V |
|
| 1.8 |
| Rasio punah | Yen = 250MA / yen = -0.4ma Pin = 0dbm | dB |
| 50 |
|
| Tec Saiki |
| A |
|
| 1.8 |
| TEC voltase |
| V |
|
| 3.4 |
| Gain gumantung polarisasi |
| dB |
| 1.5 | 2 |
| Rintangan Thermistor | T = 25 ℃ | Kω | 9.5 | 10 | 10.5 |
| Thermistor Saiki |
| mA |
|
| 5 |
| Suhu operasi |
| ℃ | -10 |
| 70 |
| Suhu panyimpenan |
| ℃ |
|
| 85 |
Kurva karakteristik
Ukuran struktural
Rofea Optoelectronics nawakake garis produk saka Modulator Komersial Komersial, Modulator Fase, FOTODETECTER, Laser, Laser, Laser Laser, PhotoDetector Laser, Lampu Laser , Amplifier optik serat, meter daya optik, broadband Laser, laser tublish, detak optik, laser diode driver, amplifier serat. Kita uga nyedhiyakake akeh modulator tartamtu kanggo kustomisasi, kayata 1 * 4 array phase modulator, vpi ultra-rendah, lan modulator rasio under dhuwur, utamane digunakake ing universitas lan lembaga.
Muga-muga produk kita bakal migunani kanggo sampeyan lan riset sampeyan.
